New
2024
Chevrolet
5500 XD LCF Diesel
2WD Reg Cab 200"
- MSRP $84,135
- MSRP $84,135
See Important Disclosures Here
New
2024
Chevrolet
5500 XD LCF Diesel
2WD Reg Cab 200"
Dealership Photos
Current Specials
- Call For Price $84,135
- MSRP $84,135
Other Offers
- Call For Today's Price 1Fleet and Commercial Vehicles may have added equipment. The price of the added equipment is not included in the MSRP. Please call for today's price 972 597 2004
Offer Disclosure
1Fleet and Commercial Vehicles may have added equipment.
The price of the added equipment is not included in the MSRP.
Please call for today's price 972 597 2004
Specifications
- Exterior Arc White
- Interior Medium Ash Gray
- Engine 4.0L 4 Cylinder Engine
- Transmission Automatic
- Stock Number 24CF0913
- Location Huffines Business Elite Fleet & Commercial
- Model Code CT65003
- MSRP $84,135
- VIN JALEEW166R7306572
- Fuel Type Diesel
- Vehicle Type COMMERCIAL VEHICLE
Payment Calculator
Vehicle At A Glance
- Fuel Economy * N/A city / N/A hwy
- Mileage 9 MILES
- Transmission Automatic
- Exterior Color Arc White
- Interior Color Medium Ash Gray
- Engine Data 4.0L 4 Cylinder Engine
Vehicle Description
Arc White exterior and Medium Ash Gray interior. CD Player, iPod/MP3 Input, Running Boards, TRANSMISSION, 6-SPEED AUTOMATIC AISIN... PIO, AUDIO SYSTEM, ENHANCED AUDIO SYS... ENGINE, DIESEL 5.2L 4 CYLINDER, Turbo Charged. SEE MORE!
KEY FEATURES INCLUDE
Running Boards, iPod/MP3 Input, CD Player. MP3 Player, Traction Control, Bucket Seats, 4-Wheel ABS, 4-Wheel Disc Brakes.
OPTION PACKAGES

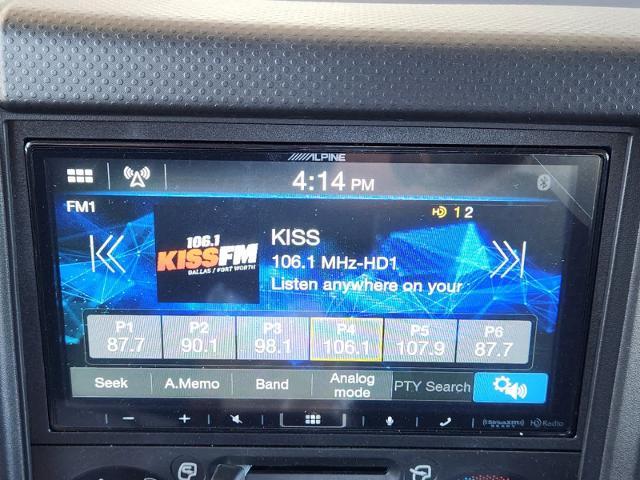

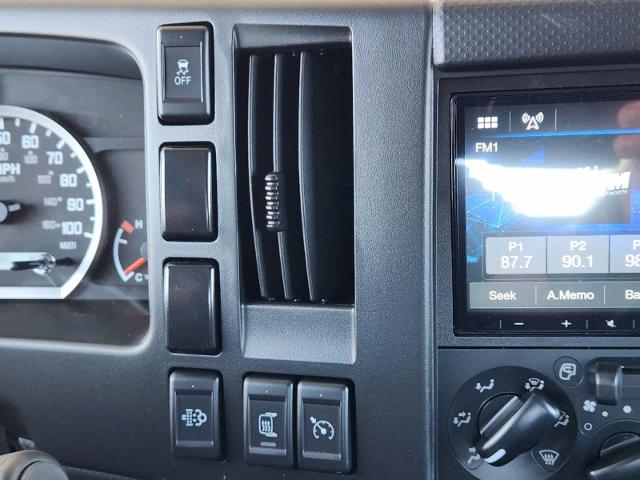

PIO, AUDIO SYSTEM, ENHANCED AUDIO SYSTEM Enhanced audio system with 7 diagonal color touchscreen, AM/FM stereo with seek-and-scan and digital clock. Additional features include: Bluetooth® capability, SiriusXM capable (requires separate SiriusXM tuner plus customer subscription), Apple CarPlay®/Android Auto® capable, Navigation via Apple CarPlay®/Android Auto®, and Rear Vision Camera. (Port Installed Option) (Includes (UVC) Rear Vision Camera, PIO.). PIO, MIRROR, OUTSIDE LEFT-HAND AND RIGHT-HAND WITH INTEGRAL CONVEX MIRRORS, HEATED, DUAL REMOTE CONTROLS (Port Installed Option), PIO, REMOTE KEYLESS ENTRY (Port Installed Option), ENGINE, DIESEL 5.2L 4 CYLINDER 215 hp [160.3 kW] @2500 rpm, 452 lb-ft of torque [612.8 Nm] @ 1850-2750 rpm (Governed). 16 valve, four cycle, chain-driven dual overhead camshaft valve train, a cast iron cylinder block, and a cast aluminum cylinder head. Turbocharged, inter-cooled, water cooled EGR, direct injection, electronically controlled common rail fuel system and engine cruise control. Oil level check switch and light. Engine warning system with audible warning for low oil pressure, high coolant temperature, and a protection system that will reduce fueling if excessive coolant temperature is detected (STD), TRANSMISSION, 6-SPEED AUTOMATIC AISIN A465 TRANSMISSION with fifth and sixth gear overdrive with lock up in 2nd, 3rd, 4th, 5th and 6th, PTO capability automatic torque converter lockup in stationary PTO mode. (STD). Chevrolet 5500 XD LCF Diesel with Arc White exterior and Medium Ash Gray interior features a 4 Cylinder Engine with 215 HP at 2500 RPM*.
Horsepower calculations based on trim engine configuration. Please confirm the accuracy of the included equipment by calling us prior to purchase.
Specifications
Entertainment

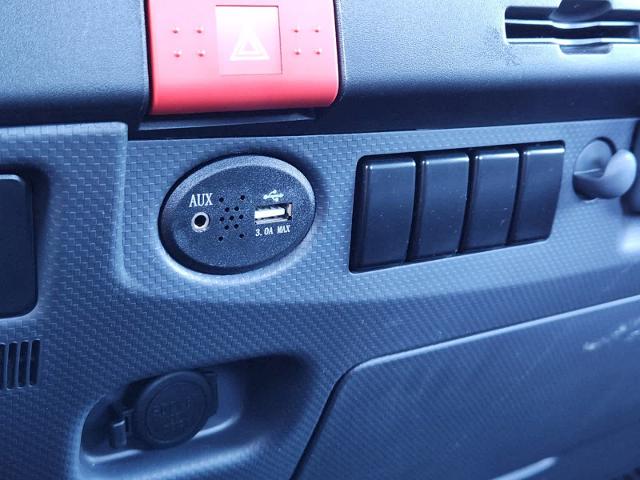

- Audio System, AM/FM stereo with CD player, auxiliary jack, USB port and Bluetooth
- Audio system feature, 2 speakers
Exterior
- Assist steps
- Glass, tinted
- Grille, Silver

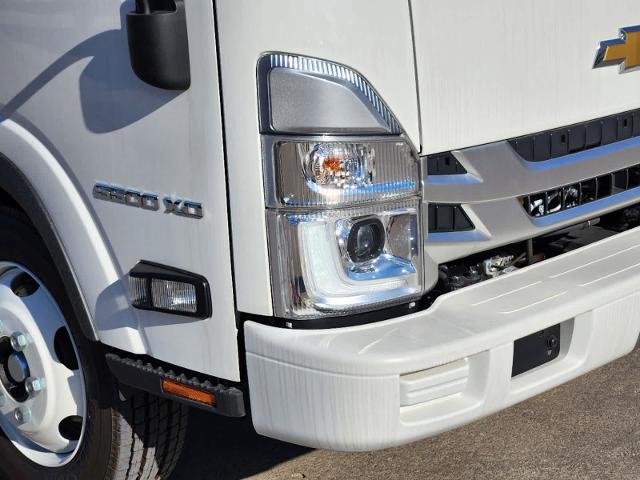

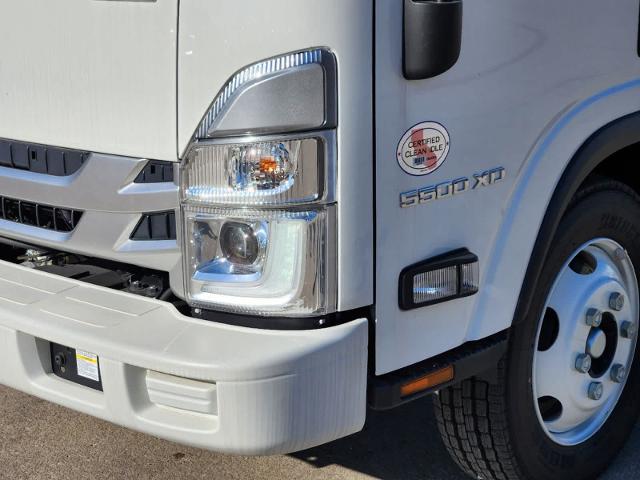

- LED Headlamps
- Mirror, outside left-hand and right hand dual cab-mounted with integral convex mirror

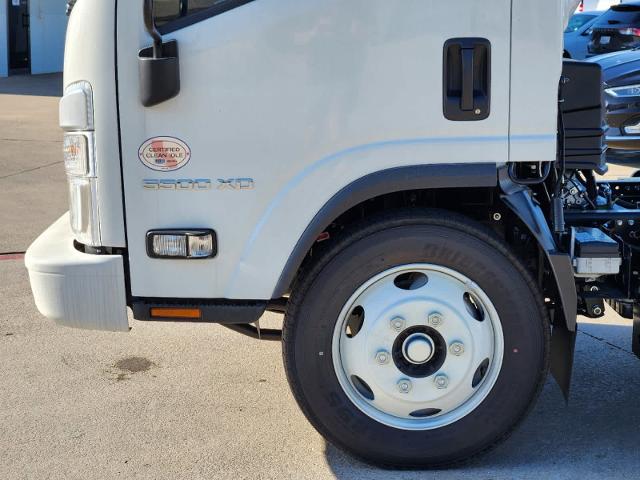

- Tires, front, 225/70R19.5 F, all-season
- Tires, rear, 225/70R19.5 F, all-season
- Wheels, 19.5" x 6", K steel
- Windshield wiper, pulse, wet arm
Interior

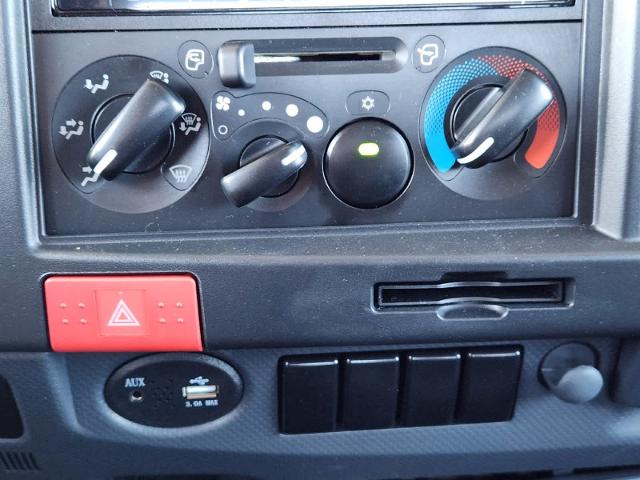

- Air conditioning, single-zone manual, integral in-dash mounted
- Cruise control, electronic, automatic
- Cup holders
- Door locks, power

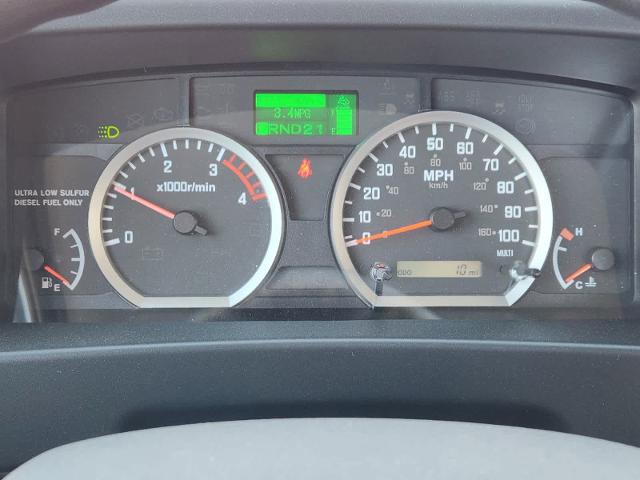

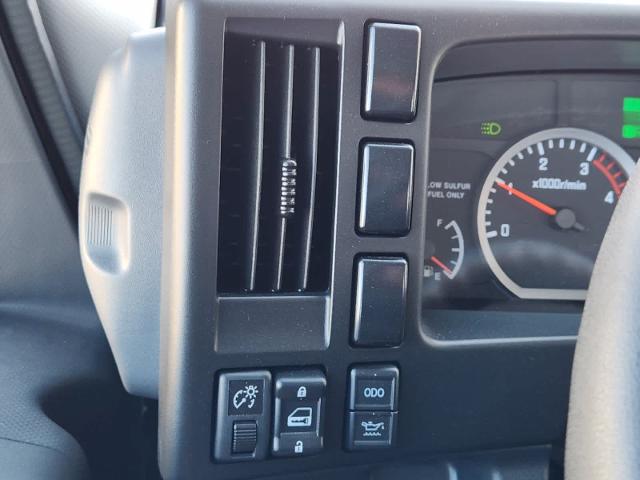

- Driver Information Center, (DIC) (monitors vital functions including diesel exhaust fluid levels (DEF), particulate matter emissions level in the diesel particulate filter (DPF), diesel particulate filter regeneration, service reminders for engine oil, transmission oil, differential oil, power steering fluid, engine oil filter, and fuel filters. Also provides fuel economy reporting by average, instant, and trip.)
- Floor mats
- Lighting, interior dome
- Seat trim, Cloth

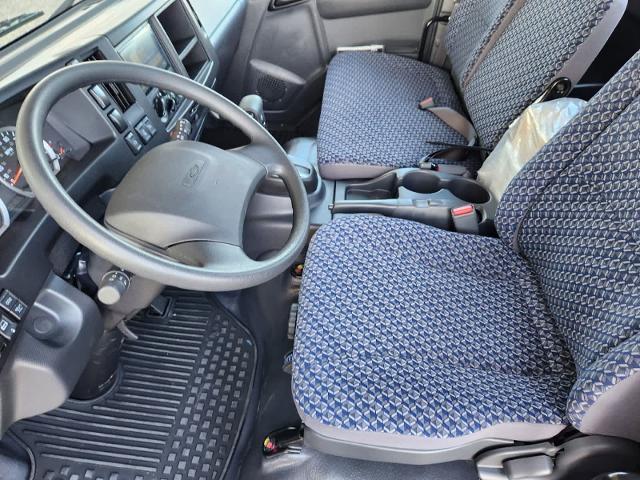

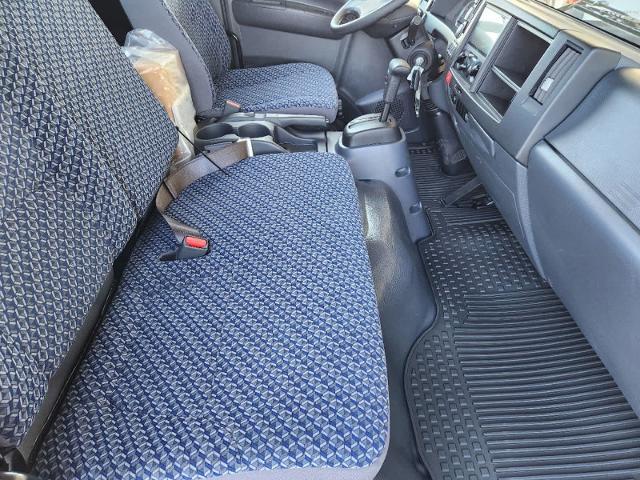

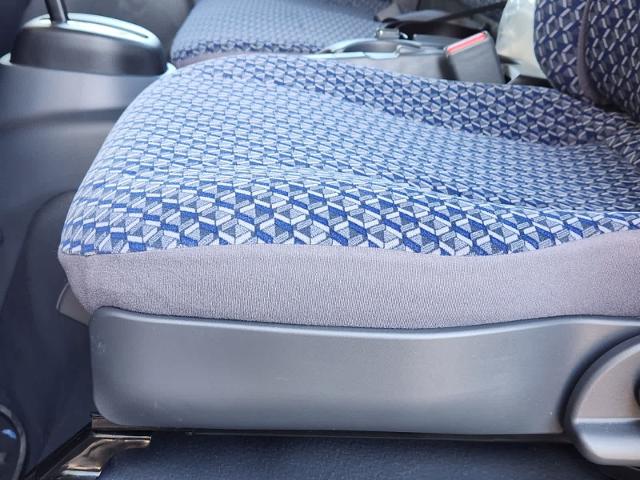

- Seat, front high back bucket driver and passenger tricoat cloth covered reclining high back driver seat with single two occupant fold down passenger seat
- Steering wheel, tilt and telescopic
- Steering wheel, urethane

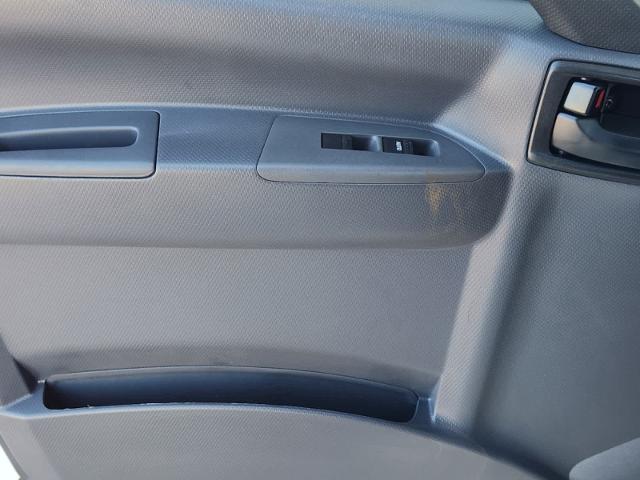

- Storage, door pockets
- Storage, seatback pockets
- Windows, power
- Windshield washer bottle access on passenger side dash when passenger-side door is open
Mechanical
- Air cleaner, heavy-duty, 11" diameter dry paper single element. Air cleaner canister standard with air restriction gauge. Back of cab location.
- Alternator, 140 amps
- Battery, dual 750 cold-cranking amps, 12 volt, maintenance free
- Brakes, 4-wheel antilock, front and rear disc with traction control and stability control
- Drivetrain, rear-wheel drive
- Engine, Diesel 5.2L 4 cylinder 215 hp [160.3 kW] @2500 rpm, 452 lb-ft of torque [612.8 Nm] @ 1850-2750 rpm (Governed). 16 valve, four cycle, chain-driven dual overhead camshaft valve train, a cast iron cylinder block, and a cast aluminum cylinder head. Turbocharged, inter-cooled, water cooled EGR, direct injection, electronically controlled common rail fuel system and engine cruise control. Oil level check switch and light. Engine warning system with audible warning for low oil pressure, high coolant temperature, and a protection system that will reduce fueling if excessive coolant temperature is detected
- Exhaust brake
- Exhaust, single horizontal outlet

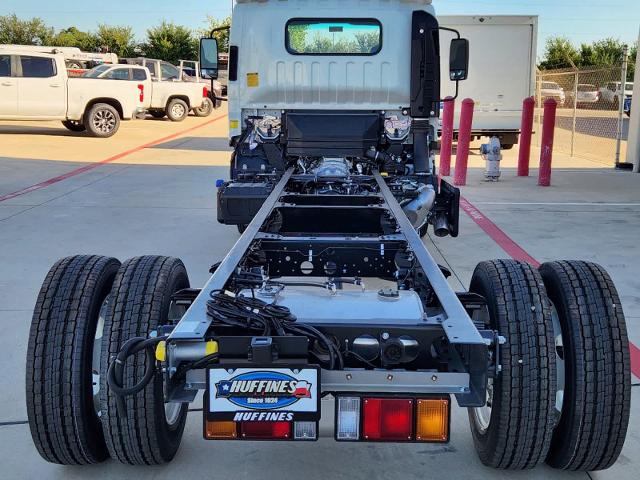

- Frame, ladder-type channel frame. Full C section straight frame 33.5" (85.1 cm) wide. Yield strength 44,000 psi, section modulus 7.20 cu.in. and RBM 316,800 lb-ft/in per rail.
- Front axle, 7275 lbs. (3300 kg), reverse Elliot "I"-beam includes integral hydraulic power steering with an 18.8-20.9:1 gear ratio (Standard on 5500XD only.)
- Front suspension, 8,440 lbs. (3828 kg) tapered leaf springs. Includes shock absorbers and stabilizer bar.
- Fuel tank, 30 Gallon, (113L), stainless steel includes 2 auxiliary fuel ports
- GVWR, 19,500 lbs. (8845 kg) (Standard on 5500XD only.)
- Incomplete vehicle certification
- Rear Suspension, 14,550 lbs. (6599 kg)
- Rear axle, 14,550 lbs. (6600 kg), full-floating with oil lubricated rear wheel-bearings
- Rear axle, 5.57 ratio (Standard on 5500XD only.)

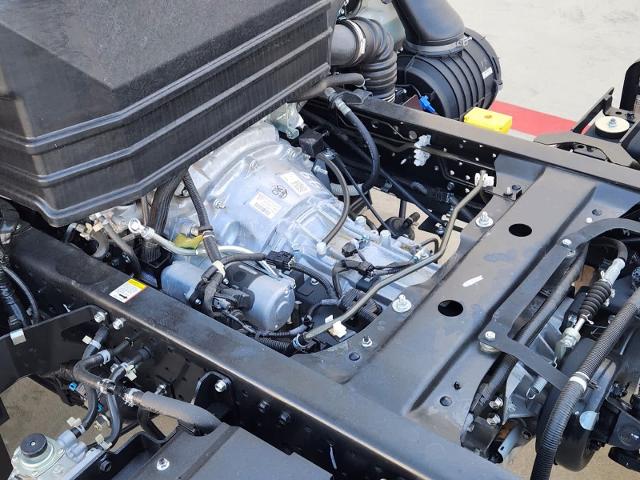

- Transmission, 6-speed automatic Aisin A465 transmission with fifth and sixth gear overdrive with lock up in 2nd, 3rd, 4th, 5th and 6th, PTO capability automatic torque converter lockup in stationary PTO mode.
- Vehicle Application Truck
- Wheelbase, 200" (508 cm) (Vehicle build will require additional lead time.)
Safety
- Brake, parking, cable actuated, internal expanding drum type, transmission-mounted
- Daytime Running Lamps
Warranty
- Basic: 3 Years/Unlimited Miles
- Corrosion: 4 Years/Unlimited Miles
- Drivetrain: 3 Years/Unlimited Miles
- Frame Rail: 3 Years/Unlimited Miles 3 years/Unlimited Miles (no charge) AND up to 5 years/Unlimited miles (50% charge)
- Maintenance: First Visit: 12 Months/12,000 Miles
- Rear Axle: 3 Years/Unlimited Miles
- Roadside Assistance: 3 Years/Unlimited Miles
